Yamaha TMAX Tech MAX 2026

Description

Its powerful 560cc engine and refined automatic transmission make this Yamaha’s fastest and smoothest Sport Scooter.



The motorcycle-type aluminium chassis and adjustable suspension provide precision handling.



And for supreme comfort the TMAX Tech MAX comes with a luxury heated seat, heated grips and an electronically adjustable screen.

Colour: Crystal Graphite
Price:
$22,199.00
Reference Number/VIN:
XP560DT
Engine:
Liquid-cooled, 4-stroke, DOHC, 4-valve
Drive Away:
Yes
Make:
Yamaha
Model:
TMAX TECH MAX
Type:
Scooter
Condition:
New
Year:
2026

Enquiry

Features

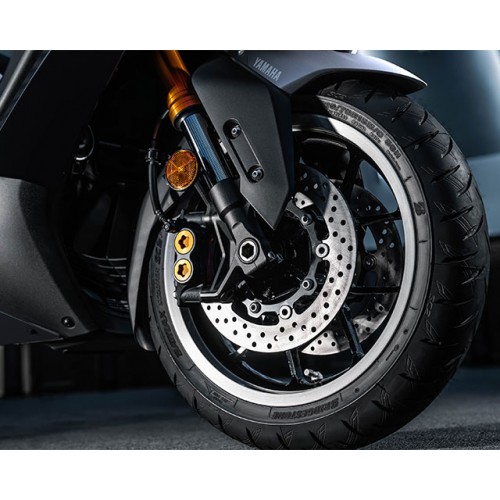

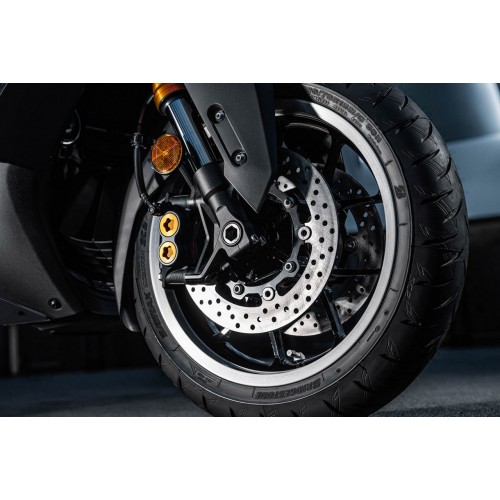

Brake Control system

Brake Control system

Developed originally for Yamaha’s high performance Supersport motorcycles, Brake Control (BC) works with the TMAX’s Anti-lock Braking System to help minimise brake slip during hard braking or when riding on low-traction surfaces, delivering the most comfortable braking performance at varying speeds, lean angles and road conditions.

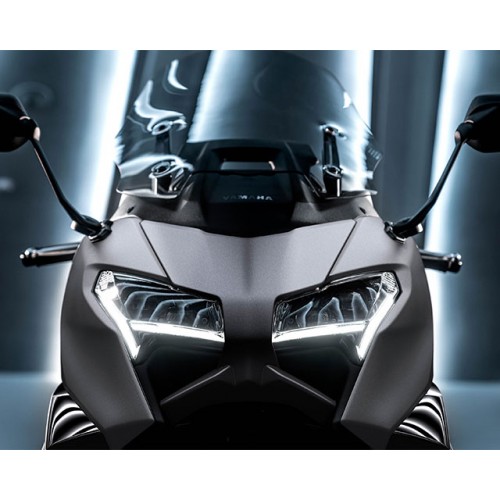

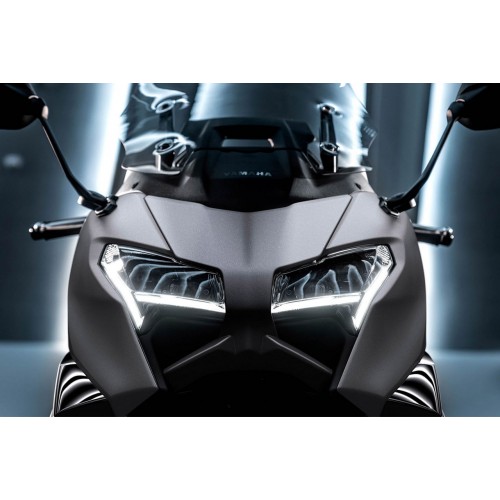

Dual eye headlights

Dual eye headlights

The TMAX Tech Max features a dynamic face with dual eye headlights and built in position lights that give a sportier and refined appearance that is instantly recognisable as being TMAX. The front bodywork is also created to complement the dual eye headlights to give a modern, simple and sharp silhouette.

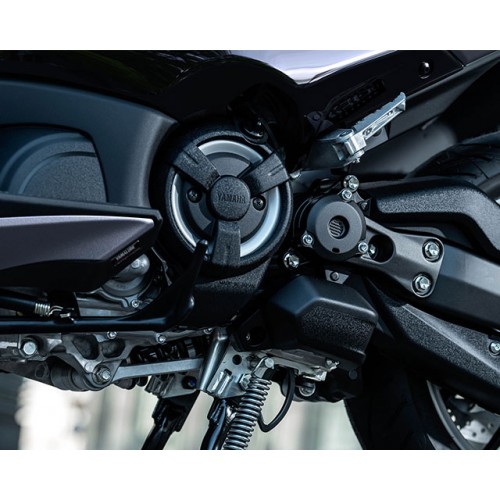

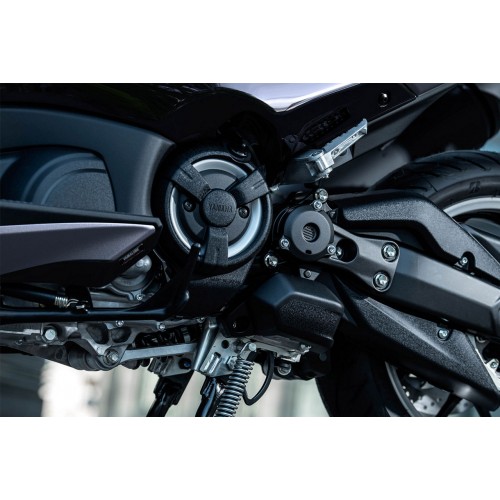

Powerful 560cc engine

Powerful 560cc engine

The TMAX Tech Max is driven by a compact and powerful engine giving spirited sports performance via an easy to use automatic transmission. The 560cc 2-cylinder engine features a special horizontally opposed reciprocating piston balancer mechanism that ensures a super smooth ride, making it ideal in a variety of riding situations.

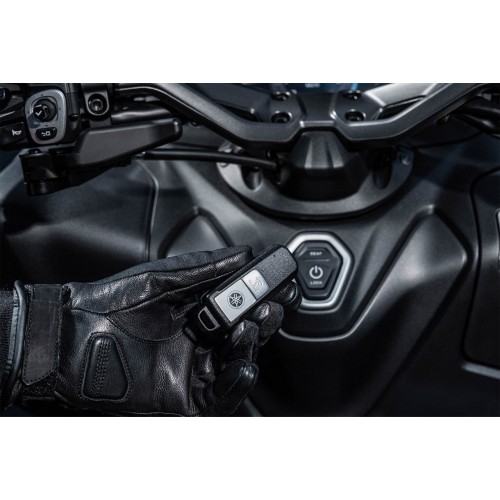

Smart Key system

Smart Key system

Using your TMAX Tech MAX is so convenient with the Smart Key in your pocket – and the 2-button backlit main switch is simple to use. This keyless technology enables you to start the engine, unlock the seat and release the centre stand easily and quickly – and you can even unlock the stylish flush fitting aero-style fuel cap.

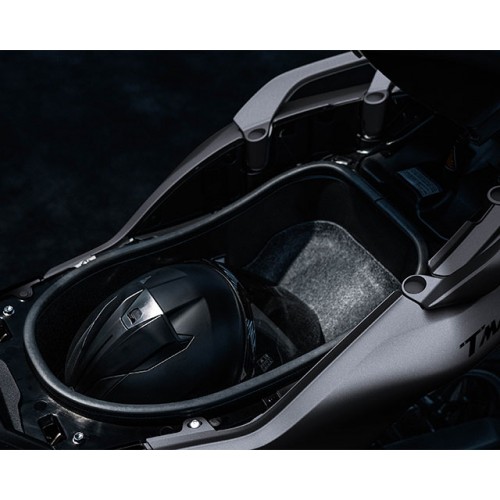

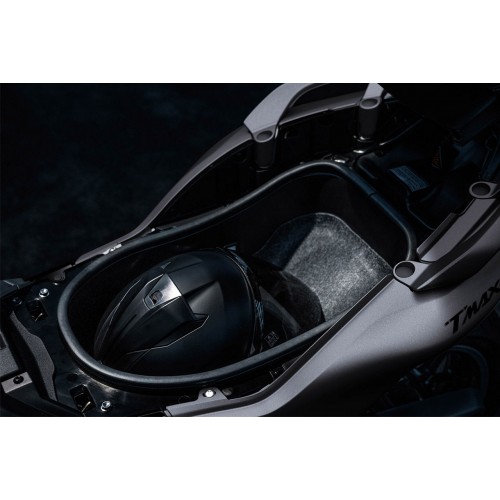

Large storage space

Large storage space

With easy keyless access, the large underseat storage space can accommodate one full-face helmet when you’re parked – and when you’re on the move it’s the ideal weatherproof space to safely carry a briefcase, laptop or your gym kit. Featuring automatic internal illumination for your convenience.

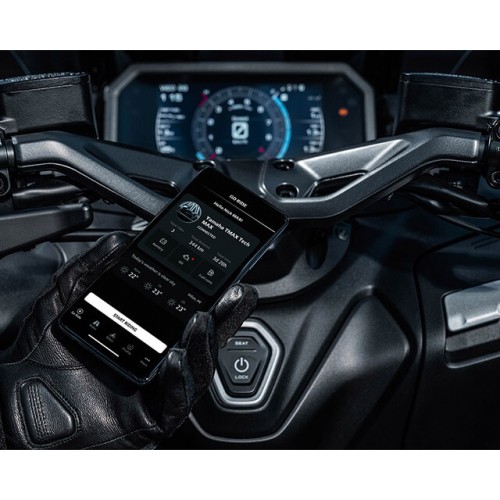

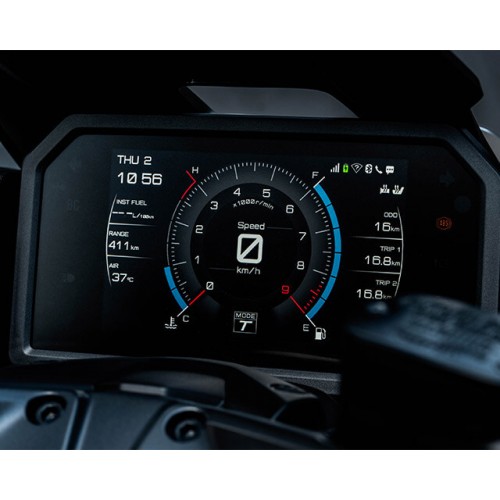

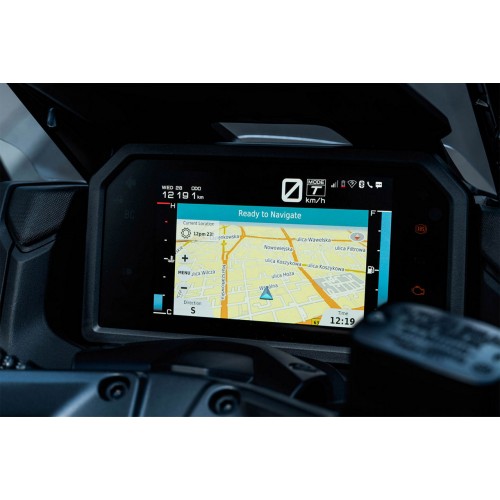

7-inch TFT with connectivity

7-inch TFT with connectivity

Connectivity on the TMAX Tech Max via the MyRide app enables riders to play music, view SMS, receive calls and email notifications, while riders can access full map Garmin Navigation through the Garmin Motorize App.

Technical Specifications


Engine

Engine Type
Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement (cc)
562.0
Bore x Stroke (mm)
70.0 x 73.0
Compression Ratio
10.9 : 1
Lubrication System
Dry Sump
Fuel Management
Fuel Injection
Ignition
TCI
Starter System
Electric
Fuel Tank Capacity (L)
15.0
Final Transmission
Belt
Transmission
V-Belt Automatic

Chassis

Frame Type
Aluminium CF die-cast
Suspension Front
Telescopic forks, 120mm travel
Suspension Rear
Swingarm, 117mm travel
Brakes Front
Hydraulic dual discs, 267mm - ABS
Brakes Rear
Hydraulic single disc, 282mm - ABS
Tyres Front
120/70R15M/C 56H Tubeless
Tyres Rear
160/60R15M/C 67H Tubeless

Dimensions

Length (mm)
2195
Width (mm)
780
Height (mm)
1415 / 1525
Seat Height (mm)
800
Wheelbase (mm)
1575
Ground Clearance (mm)
135
Wet Weight (kg)
221
